| Technical Data | TDSJ-B4 | TDA25-WX | TDC30-WX |
| Power input | 3ph 380V 50hz 63amp | 3ph 380V 50hz 63amp | |
| Drive Motor | 25kw | 30kw | |
| Dimension (mm) | 1873 x 945 x 1157 | 650 x 470 x 940 | 1450 x 548 x 771 |
| Weight (kg) | 380 | 185 | 230 |
| Main drive pulley | Ø560mm | ||
| Sub drive pulley | Ø200mm | ||
| Diamond wire | 10.5mm – 12.0mm | ||
| Diamond wire storage | 21m | ||
| Hydraulic Pressure (mpa) | 30 | 31.5 | |
| Hydraulic Flow (L/min) | 50 | 60 | |
| Lifting point | 2 | 2 | 4 |

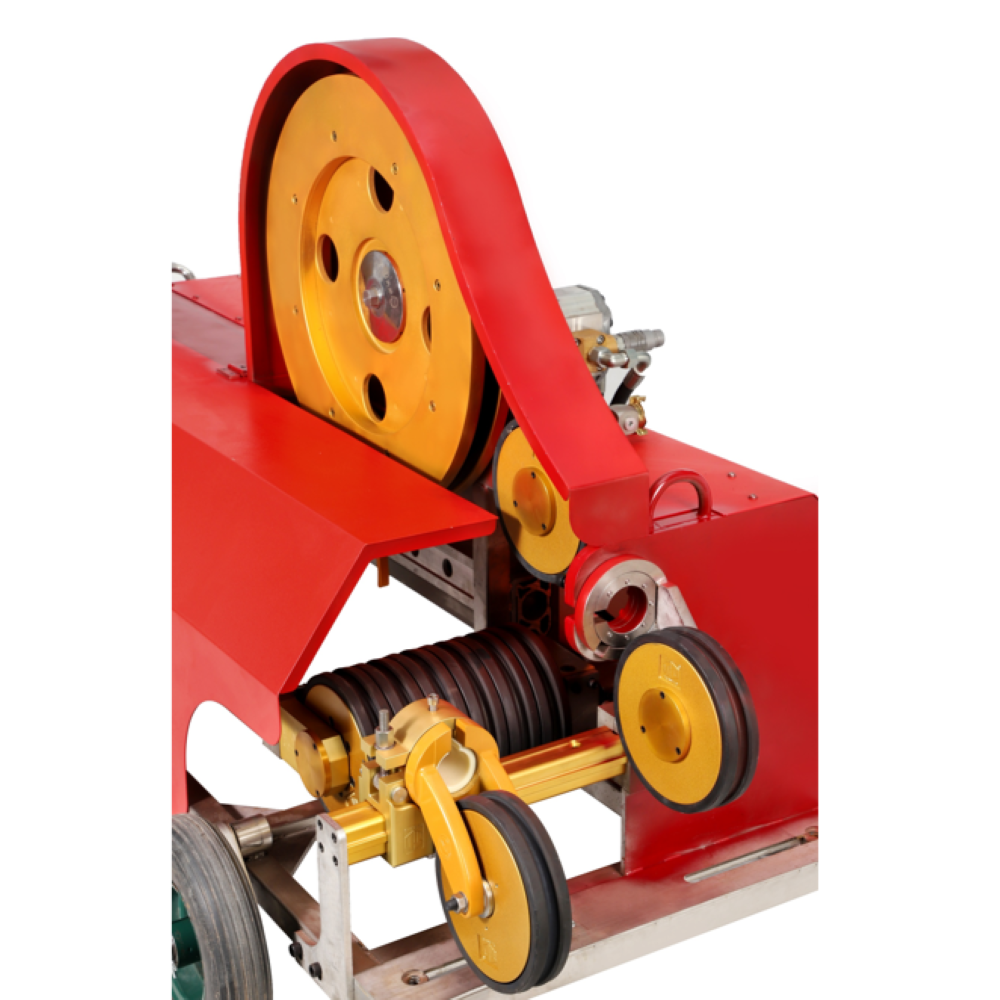

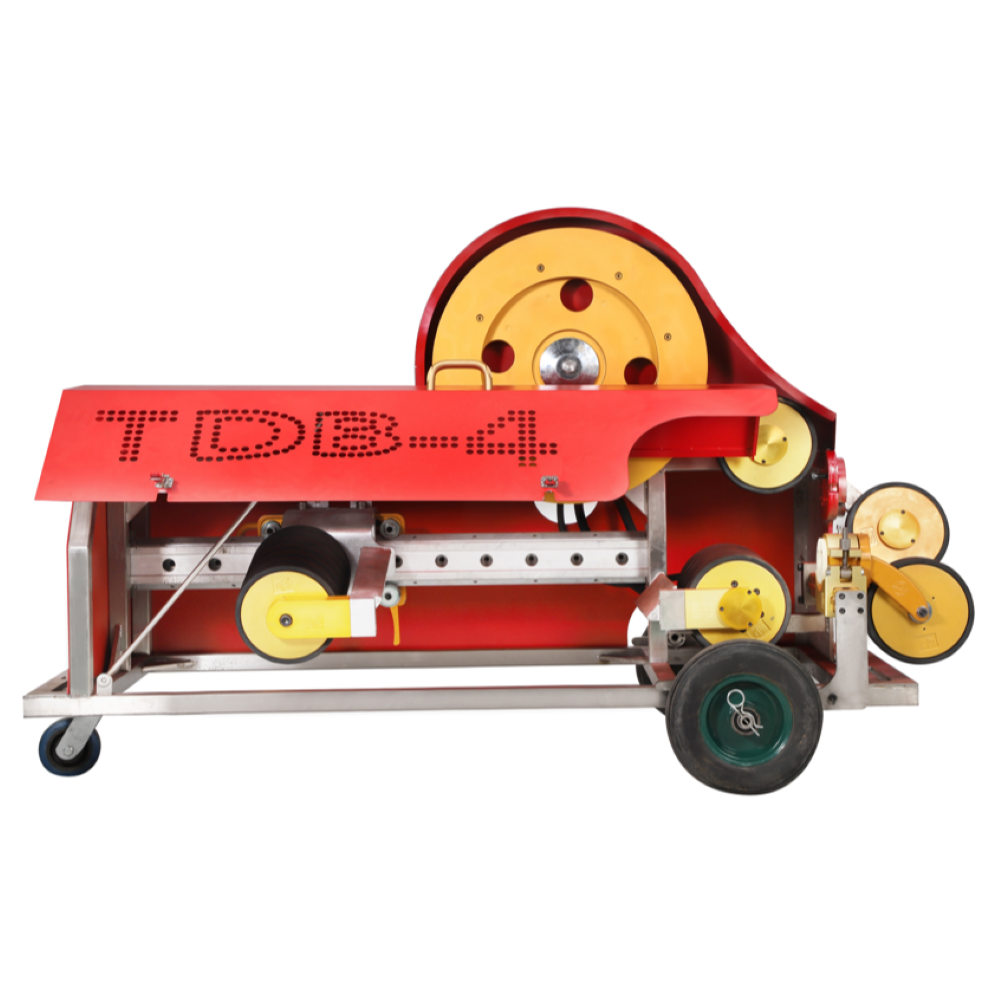

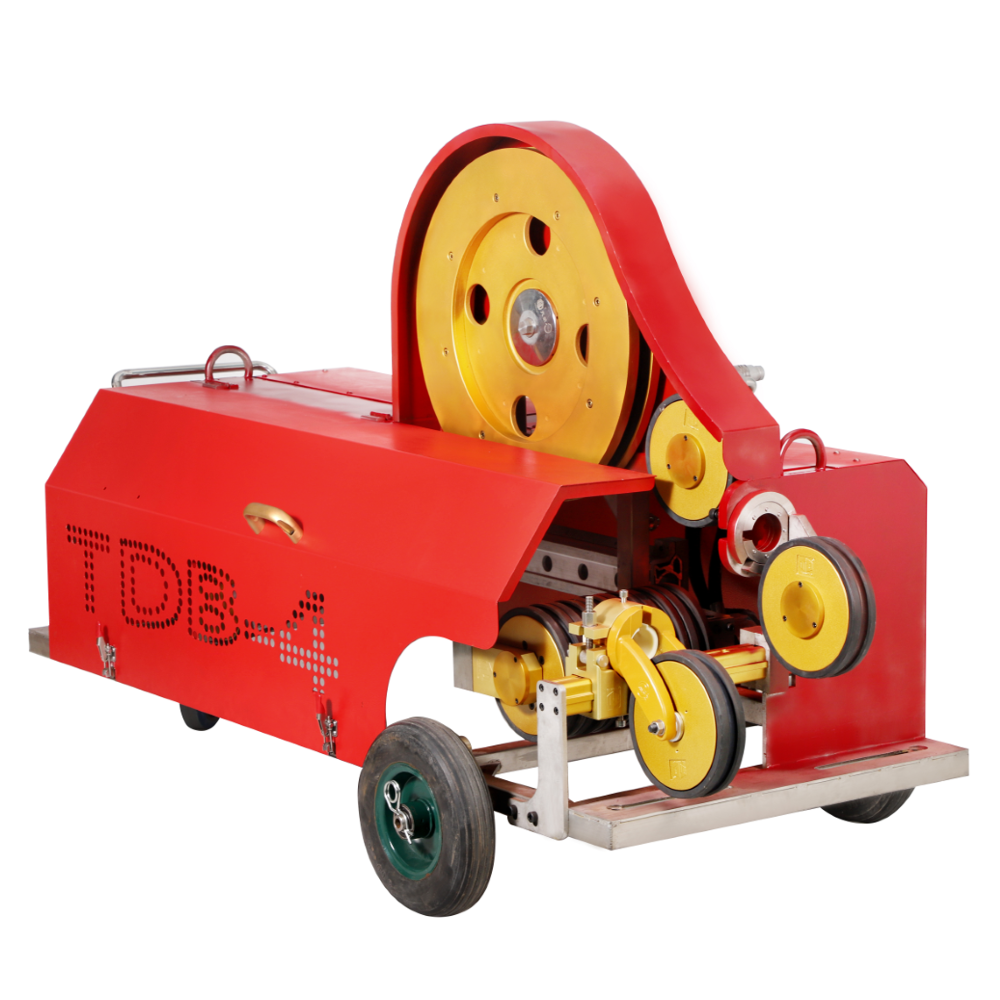

Team-D Hydraulic Wire Saw (TDSJ-B4)
The TDSJ-B4 is a compact, powerful hydraulic wire saw designed for professional cutting tasks—from light-duty work to heavy-duty operations. Ideal for bridges, tunnels, diaphragm walls, support beams, and offshore deep-sea projects, it delivers strong, consistent performance in demanding conditions.
Built for easy maintenance yet powerful operation, the TDSJ-B4 features a lightweight, ergonomic design and dual drive motors that automatically tighten the wire for precise, efficient cutting. It’s a dependable, high-performance solution for large-scale concrete cutting projects.
