| Technical Data | TDSJ-B1 | TDA25-WX | TDC30-WX |
| Power input | 3ph 380V 50hz 63amp | 3ph 380V 50hz 63amp | |
| Drive Motor | 25kw | 30kw | |
| Dimension (mm) | 880 x 850 x 1760 | 650 x 470 x 940 | 1450 x 548 x 771 |
| Weight (kg) | 120 | 185 | 230 |
| Main drive pulley | Ø200mm | ||
| Diamond wire | 10.5mm – 12.0mm | ||
| Diamond wire storage | 11.5m | ||
| Hydraulic Pressure (mpa) | 30 | 31.5 | |
| Hydraulic Flow (L/min) | 50 | 60 | |
| Lifting point | 1 | 2 | 4 |

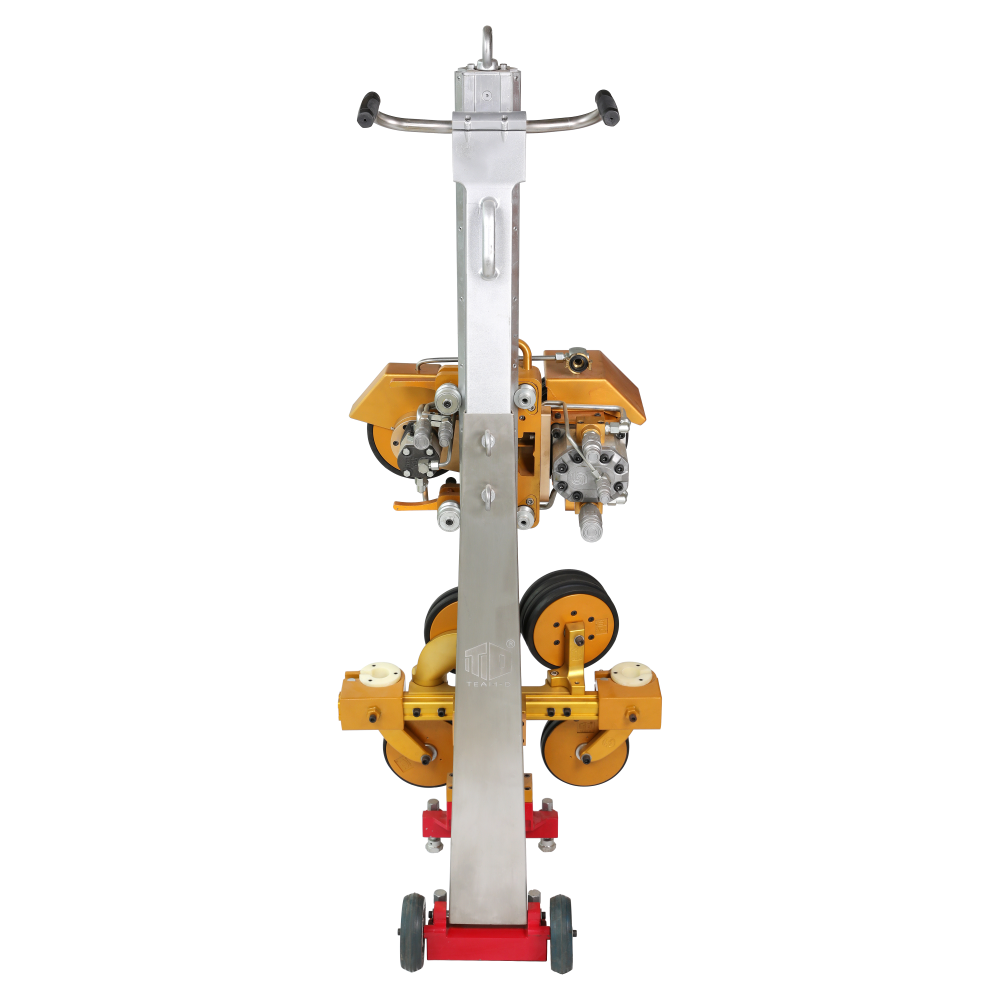

Team-D Hydraulic Wire Saw (TDSJ-B1)
Powered by the TD hydraulic power pack, the TDSJ-B1 Hydraulic Wire Saw is engineered for a wide range of cutting tasks—from light-duty jobs to heavy structural demolition.
Ideal for bridge and tunnel work, support beam removal, and underwater or deep-sea cutting, it features dual drive motors with automatic wire tensioning for precise, continuous performance. As the lightest model in the TD wire saw series, it offers a compact, ergonomic design made from durable magnesium-aluminum alloy for easy setup, angle adjustment, and excellent waterproof protection.
A dual-gear walking system, quick-install wheels, and an adjustable bolt for wire direction and length ensure powerful, efficient cutting and long service life across diverse job sites.
