| Technical Data | TDSJ-A2 | TDA25-WX | TDC30-WX |
| Power input | 3ph 380V 50hz 63amp | 3ph 380V 50hz 63amp | |
| Drive Motor | 25kw | 30kw | |
| Dimension (mm) | 700 x 720 x 1760 | 650 x 470 x 940 | 1450 x 548 x 771 |
| Weight (kg) | 120 | 185 | 230 |
| Main drive pulley | Ø200mm | ||
| Diamond wire | 10.5mm – 12.0mm | ||
| Diamond wire storage | 6.8m | ||
| Hydraulic Pressure (mpa) | 30 | 31.5 | |
| Hydraulic Flow (L/min) | 50 | 60 | |
| Lifting point | 1 | 2 | 4 |

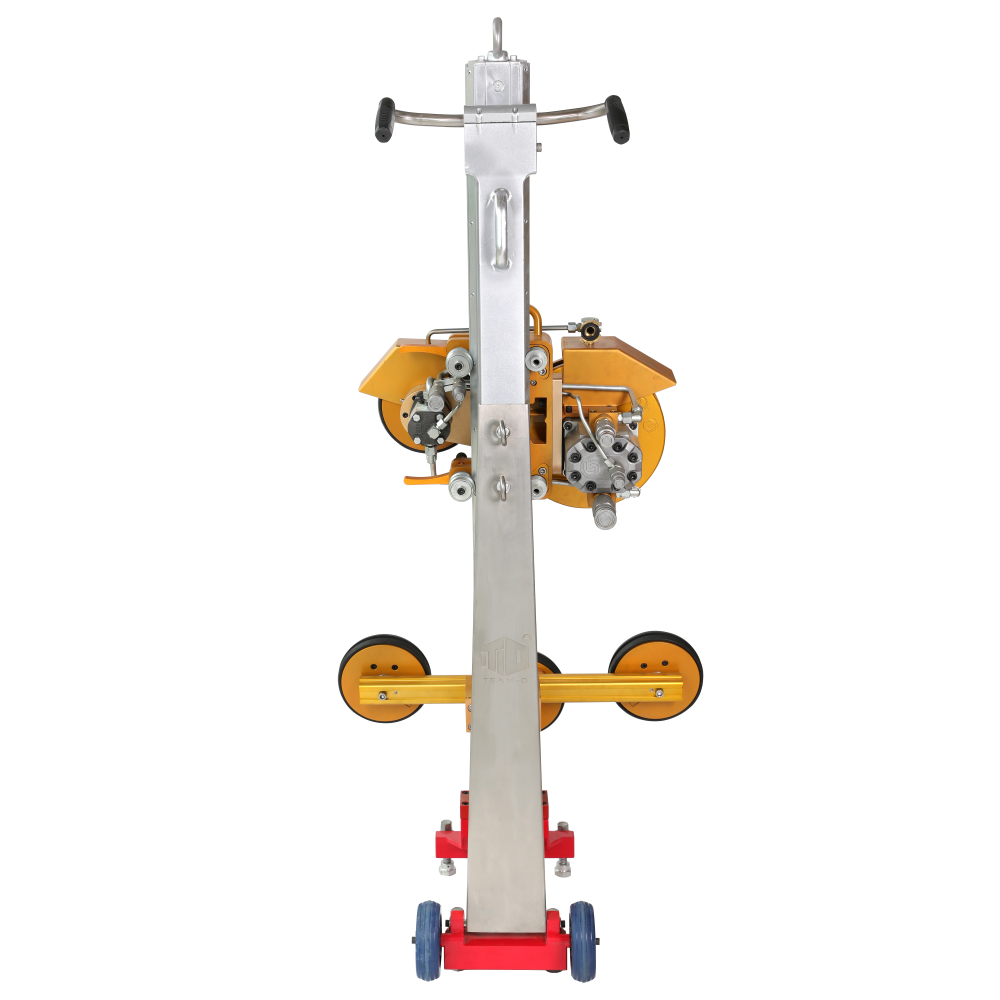

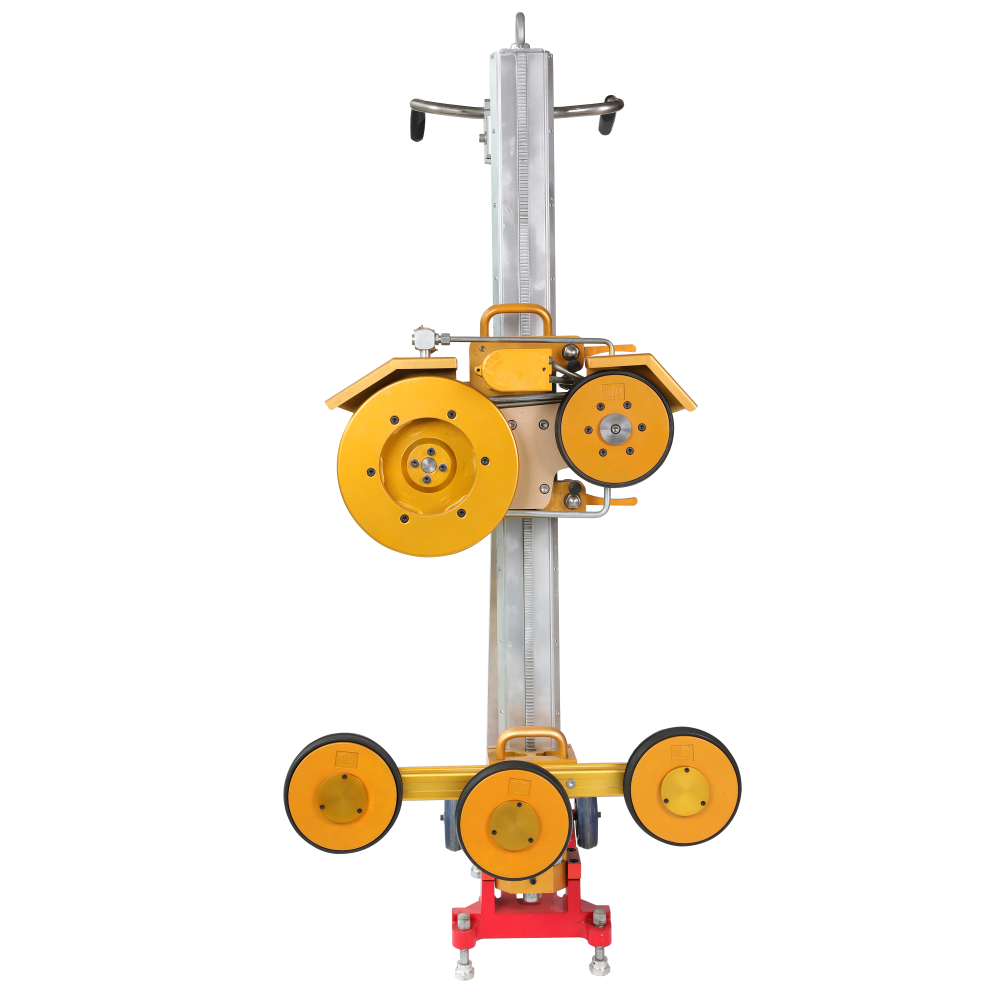

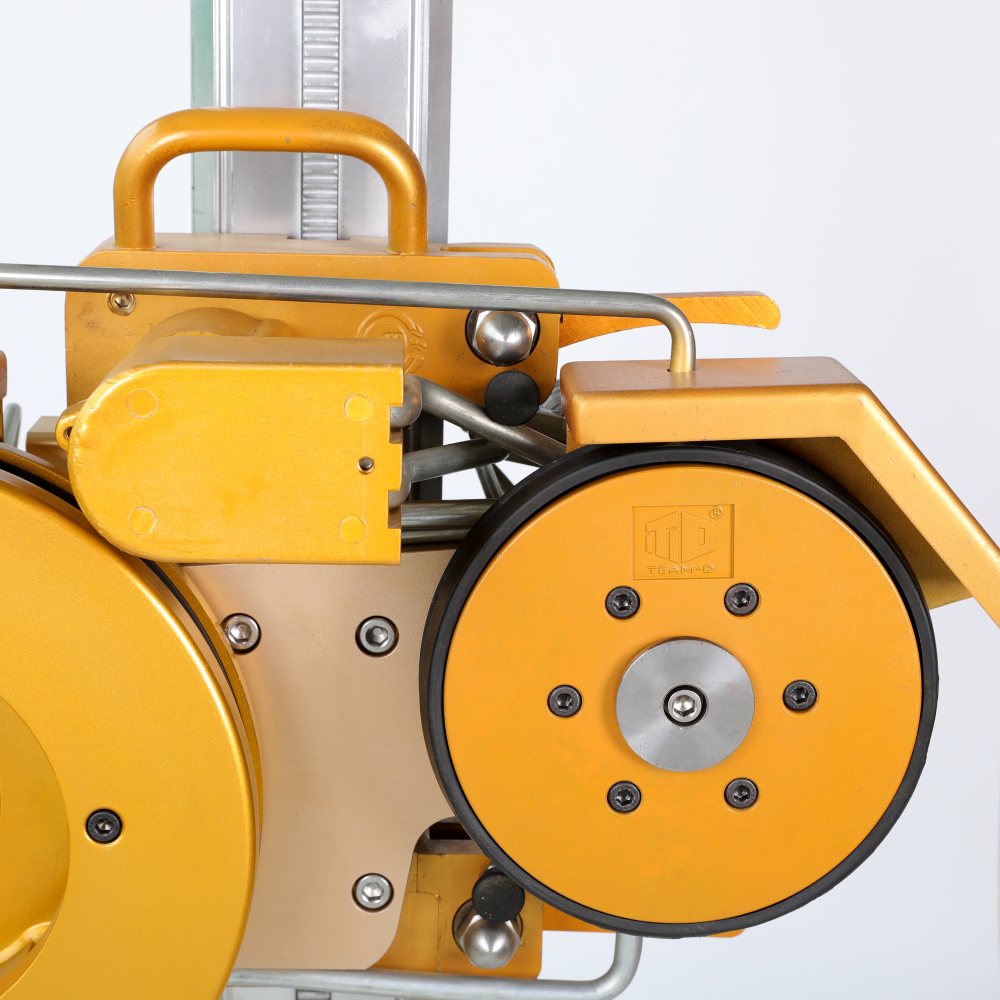

Team-D Hydraulic Wire Saw (TDSJ-A2)
The TDSJ-A2 Hydraulic Wire Saw is purpose-built for professional contractors who require precision and portability in small-scale cutting operations. Powered by a high-performance hydraulic power pack, it delivers reliable performance across a wide range of tasks—from light-duty cuts to more demanding structural applications. Ideal for bridge and tunnel work, support beam removal, and offshore or underwater projects, the TDSJ-A2 is designed to perform in challenging environments.
Its lightweight, ergonomic design ensures easy handling and quick setup, making it especially effective in confined or hard-to-reach spaces. Combining efficiency, control, and adaptability, the TDSJ-A2 is the ideal solution for precision cutting in compact job sites.
