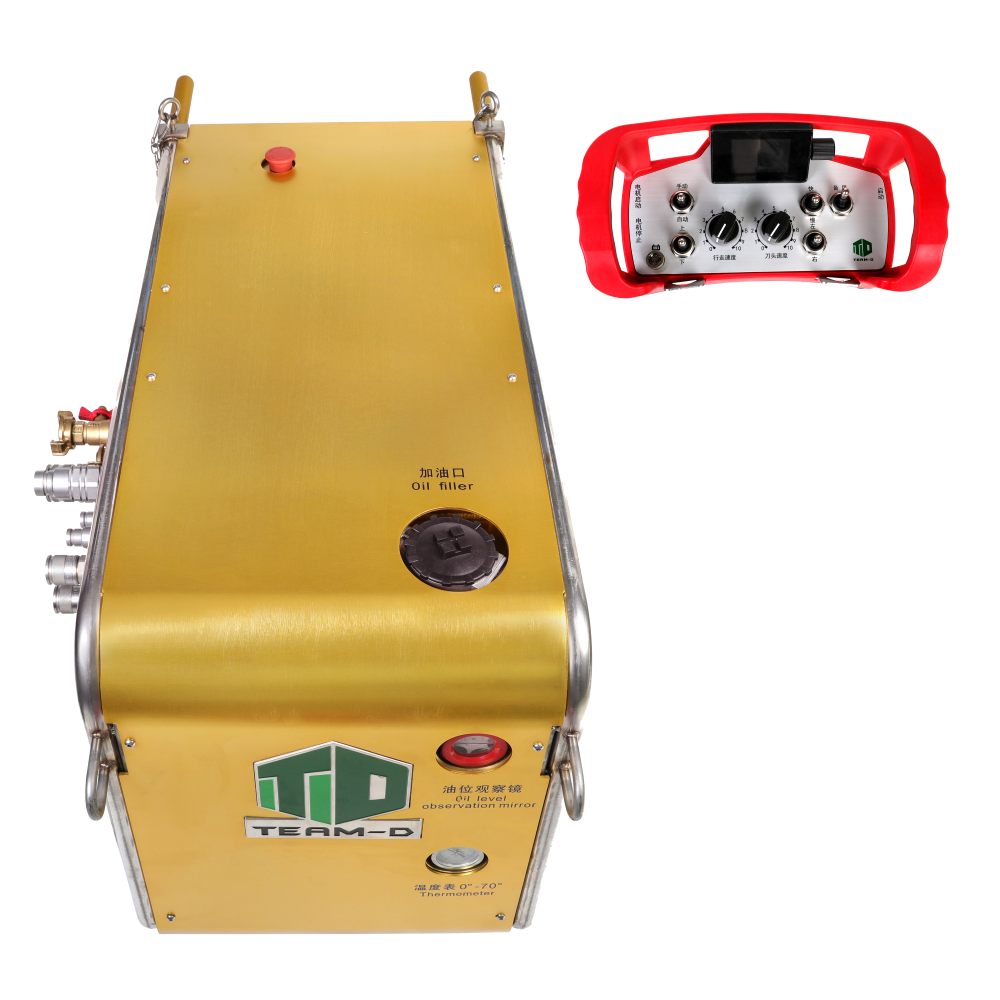

| Technical Data | TD Plunge Saw | TDC30-WX |
| Power input | 3ph 380V 50hz 63amp | |
| Drive Motor | 30kw | |
| Dimension (mm) | 500* x 500 x 2200* | 1450 x 548 x 771 |
| Weight (kg) | 80 | 230 |
| Blade Size | Ø1200mm | |
| Hydraulic Pressure (mpa) | 31.5 | |
| Hydraulic Flow (L/min) | 60 | |
| Lifting point | 1 | 4 |

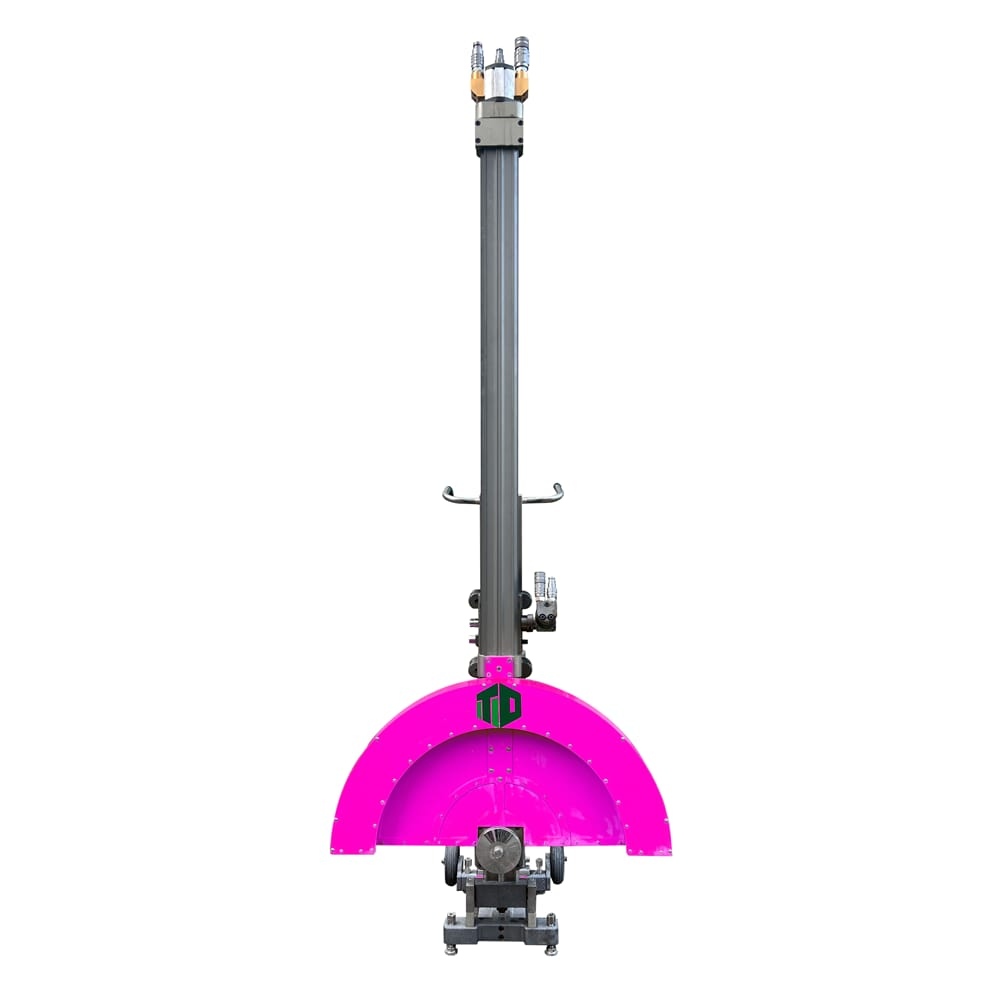

*The saw has a length of 500mm without the blade guard and 1300mm with the blade guard. The height is adjustable to suit your needs
